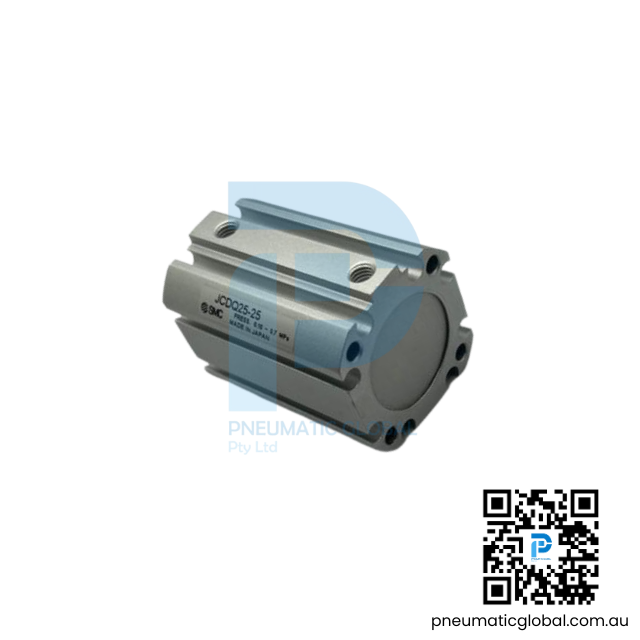

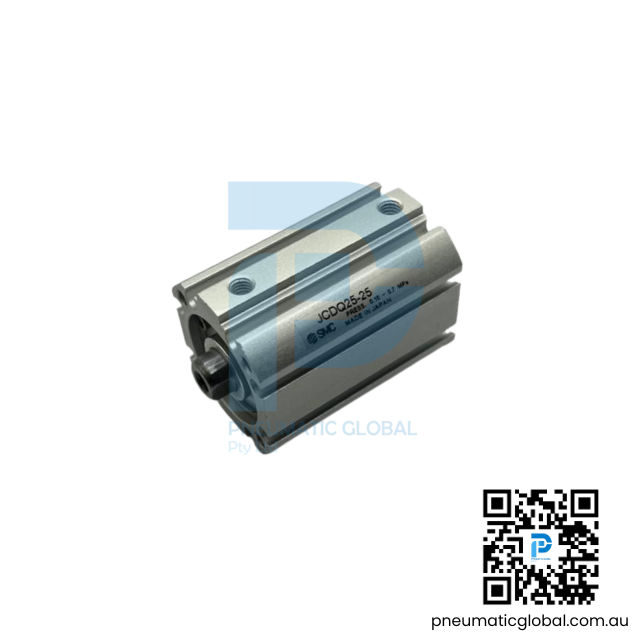

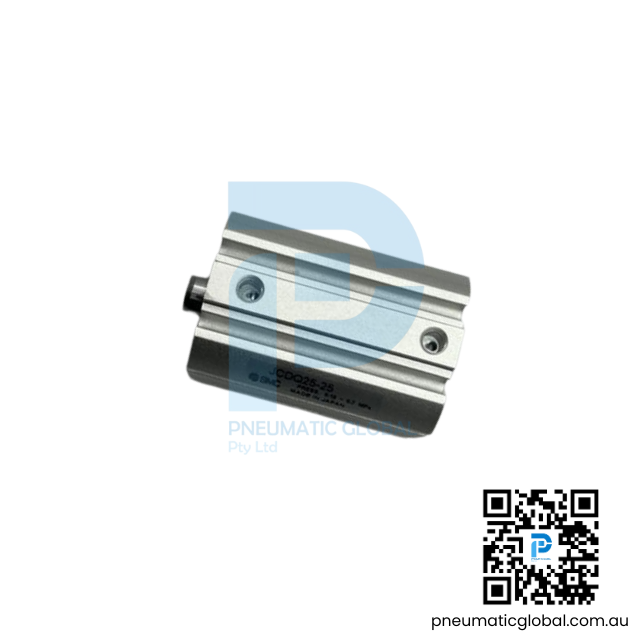

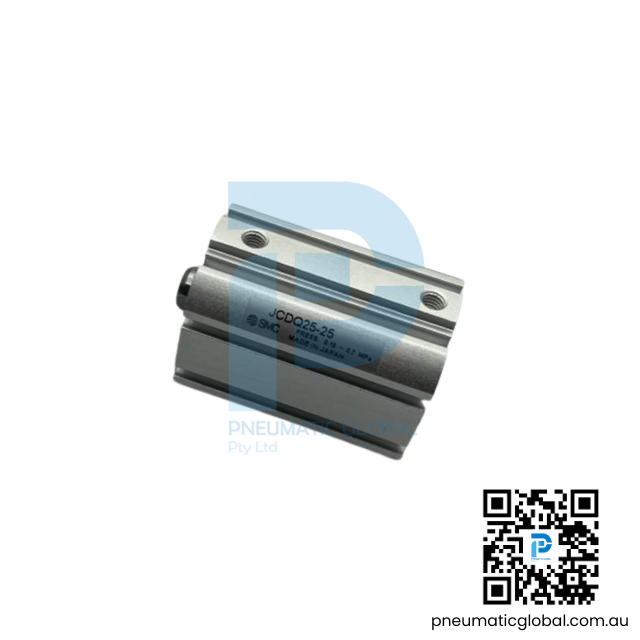

Air Cylinder JCDQ25-25 | SMC Model
99.90 AU$
Compact Cylinder | Double Acting Cylinder
JCDQ25-25 Air Cylinder a compact double-acting pneumatic cylinder with a 25 mm bore and 25 mm stroke, designed for reliable and space-saving linear motion.
In Stock: 1
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.
| Specification | Details |
|---|---|
| Bore Size | 25 mm |
| Stroke Length | 25 mm |
| Type | Compact Air Cylinder |
| Action Type | Double Acting |
| Rod Type | Single Rod |
| Cushioning | Rubber Bumper Cushioning |
| Operating Medium | Compressed Air |
| Operating Pressure Range | 0.05 to 1.0 MPa |
| Port Size | M5 × 0.8 |
| Body Material | Aluminum Alloy |
| Piston Rod Material | Stainless Steel |
| Operating Temperature | -10°C to +70°C |
| Mounting Type | Standard Mounting |
| Features | Compact design, high durability, smooth operation, magnetic piston |
Backorder items will ship in 3–4 weeks from the confirmation date.
| Weight | 0.127 kg |
|---|
