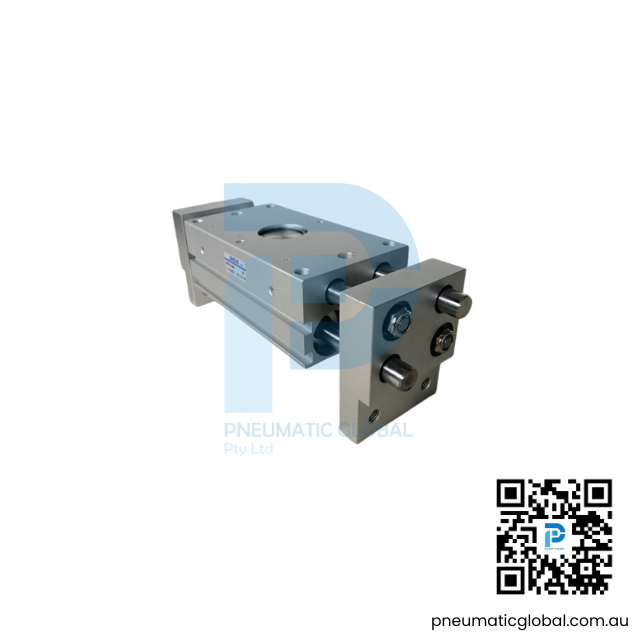

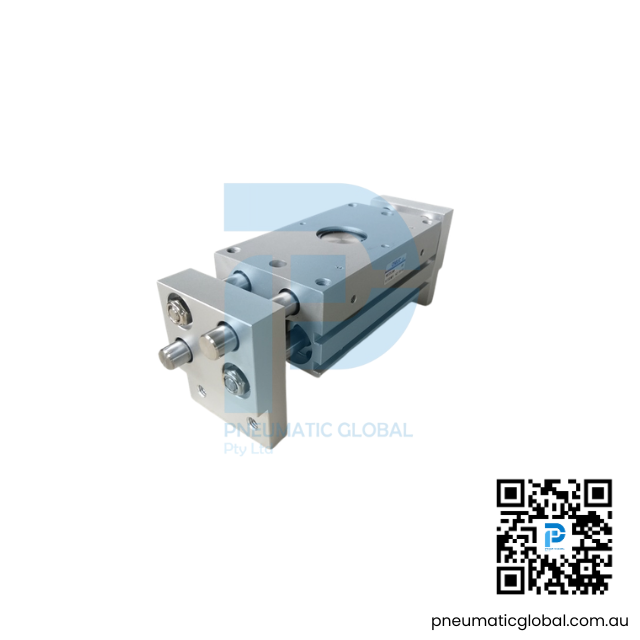

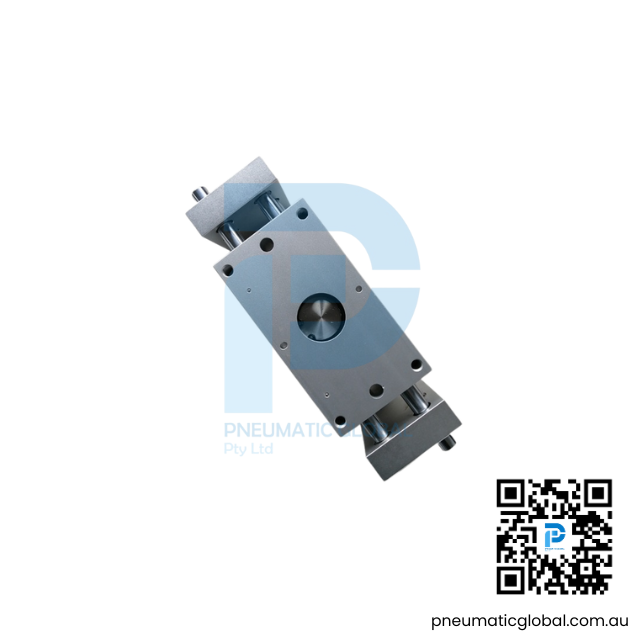

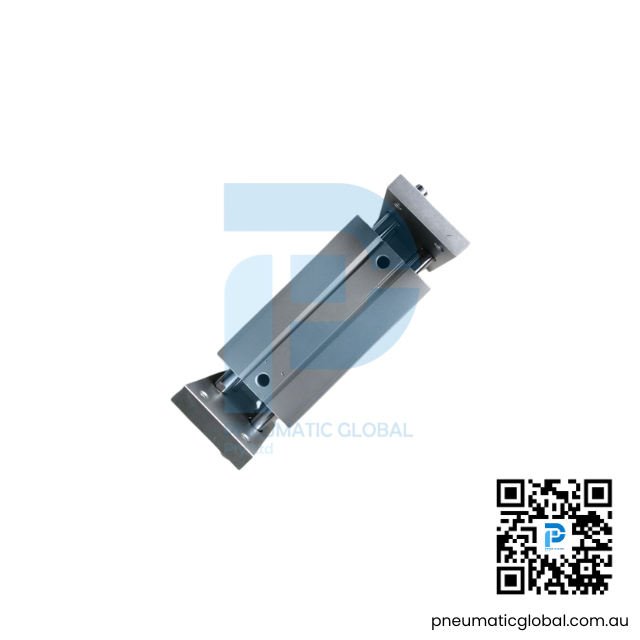

Gripper HDT25*100 | CHELIC Model
494.90 AU$
Wide Type Air Gripper | Pneumatic Gripper
HDT25×100 Wide Type Air Gripper a double-acting pneumatic gripper with a 25 mm bore and 100 mm opening stroke, featuring a parallel shift clamp, built-in magnet, and high gripping force.
In Stock: 2
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.
| Specification | Details |
|---|---|
| Type | Wide Type Air Gripper |
| Bore Size | 25 mm |
| Opening Stroke | 100 mm |
| Action Type | Double Acting |
| Finger Type | Standard |
| Operating Medium | Compressed Air |
| Operating Pressure Range | 1.5 to 7 kgf/cm² (150–700 kPa) |
| Port Size | M5 × 0.8 |
| Lubrication | Lubrication-Free |
| Sensing Device | Built-in Magnet |
| Operating Temperature | 0°C to +60°C |
| Maximum Operating Frequency | 40 cycles/min |
| External Gripping Force | 128 N |
| Internal Gripping Force | 90 N |
| Mounting Type | Multiple Mounting Options |
| Features | Parallel shift clamp, wide opening stroke, high gripping force, built-in magnet |
Backorder items will ship in 3–4 weeks from the confirmation date.
| Weight | 2.425 kg |
|---|
