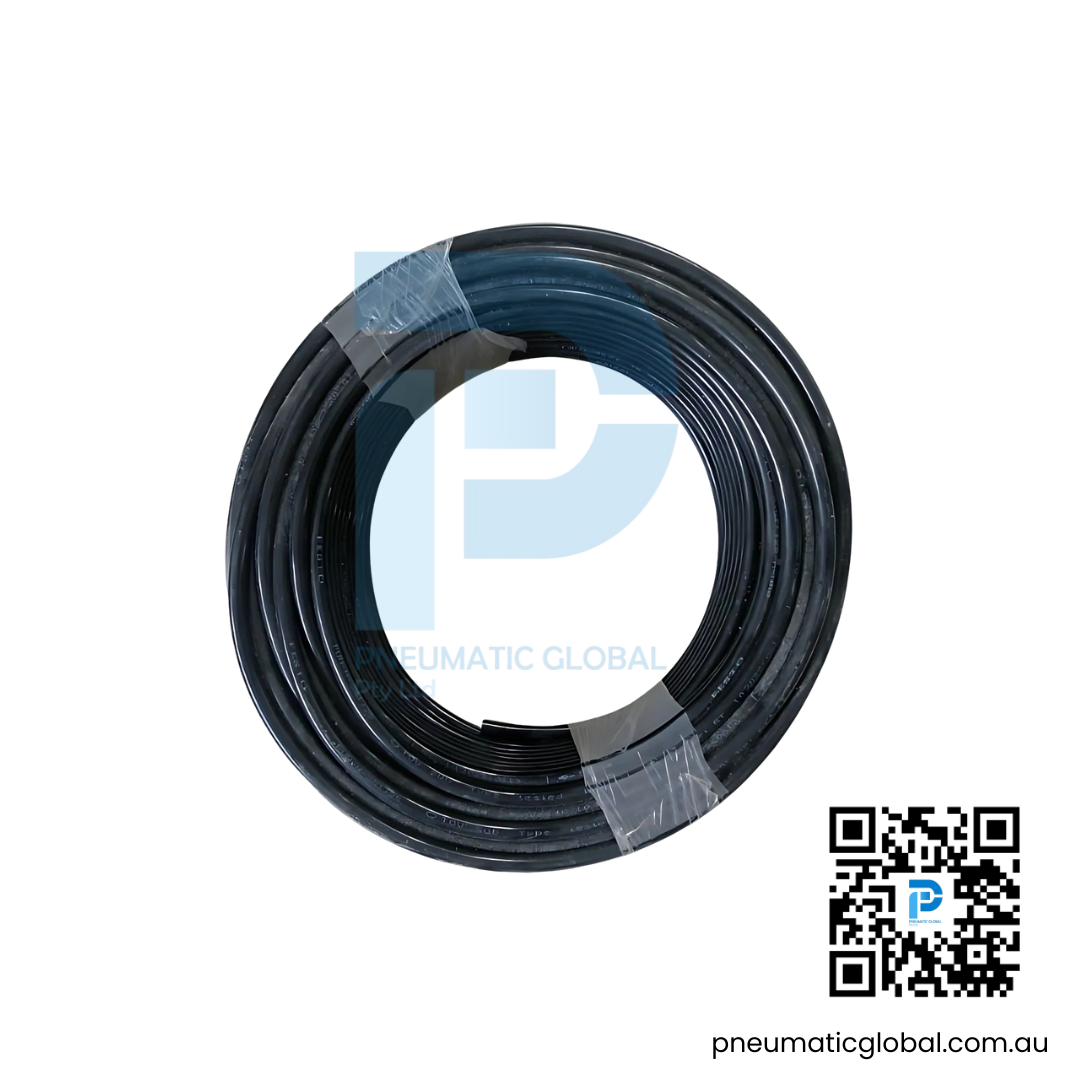

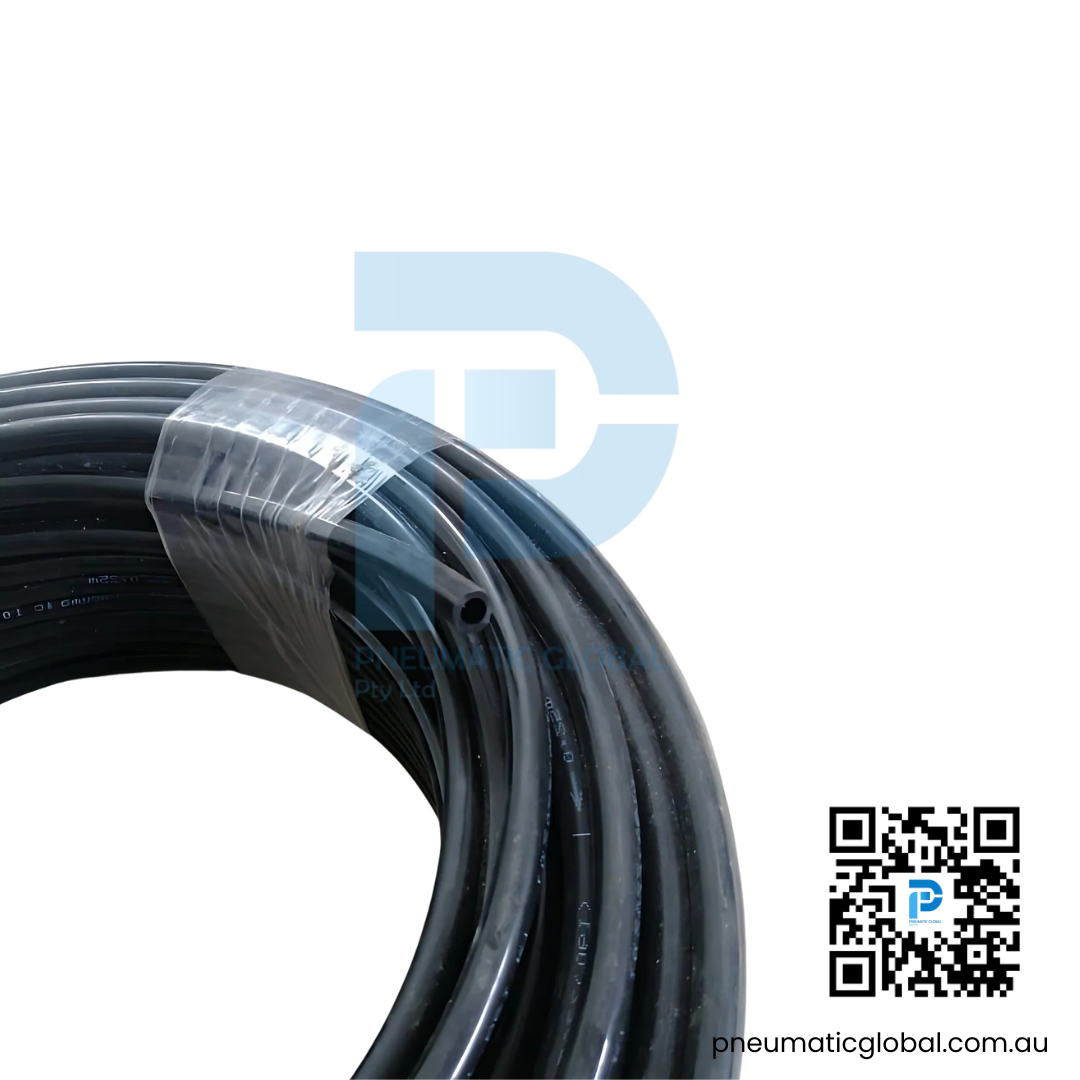

Tubing PUN-H-8X1.25-SW Pneumatic Tube – Black | FESTO Model

Name: Tubing PUN-H-8X1.25-SW Pneumatic Tube - Black | FESTO Model
SKU: 39309
Availability: InStock

567.00 US$

Outer Diameter 8 mm

Inner Diameter 5.7 mm

In Stock: 88
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 39309 Category: Tubes

Outer Diameter: 8 mm
Inner Diameter: 5.7 mm
Wall Thickness: 1.25 mm
Material: TPE-U (Polyurethane)
Color: Black
Operating Pressure:
- Standard: –0.095 MPa to 0.6 MPa (–13.8 to 87 psi)
- Max (temperature-dependent): up to 1 MPa (145 psi)
Temperature Range: –35 °C to +60 °C
Minimum Bending Radius: 21 mm
Flow-Relevant Bending Radius: 37 mm
Compliance: RoHS, TÜV certified, UL94 HB flame rating
