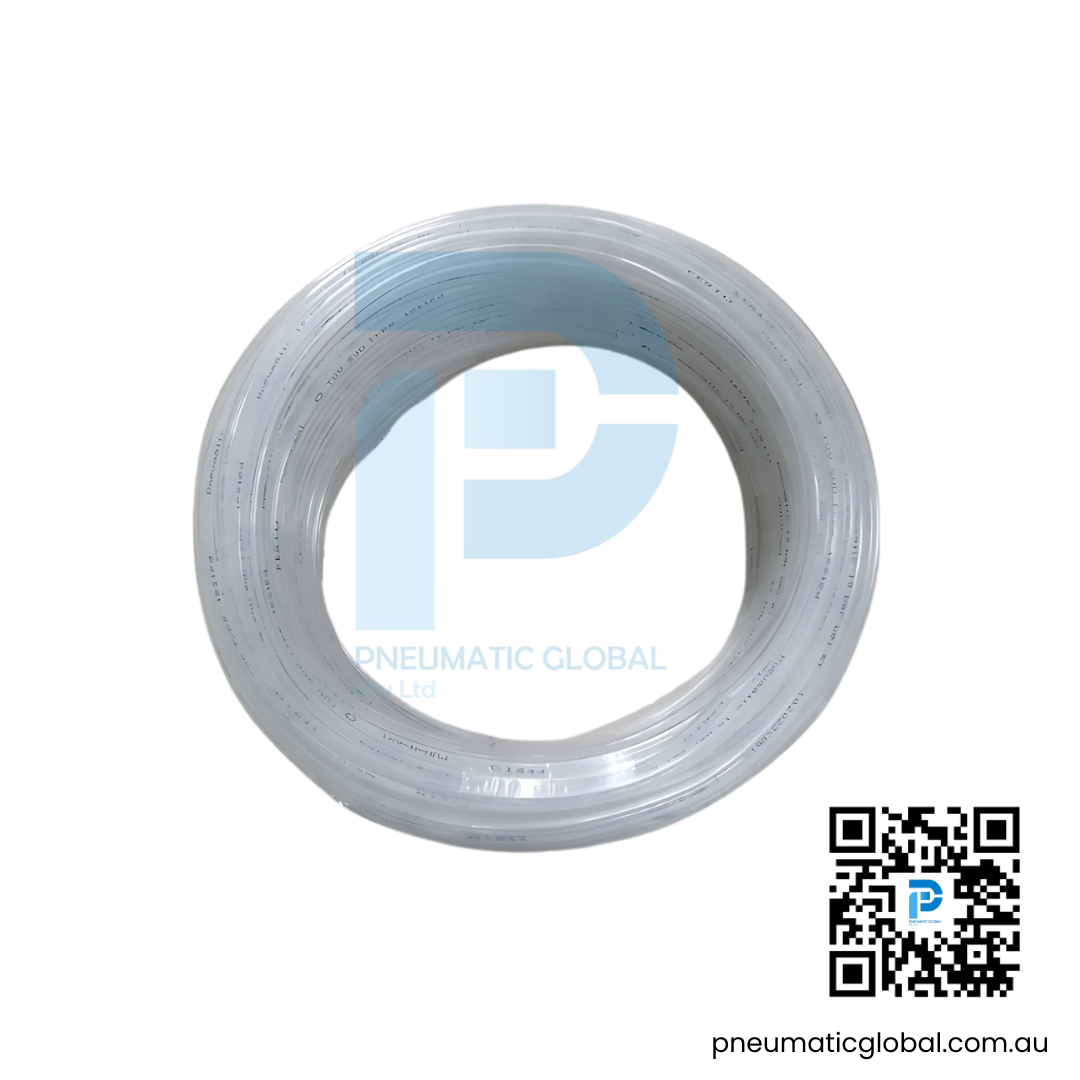

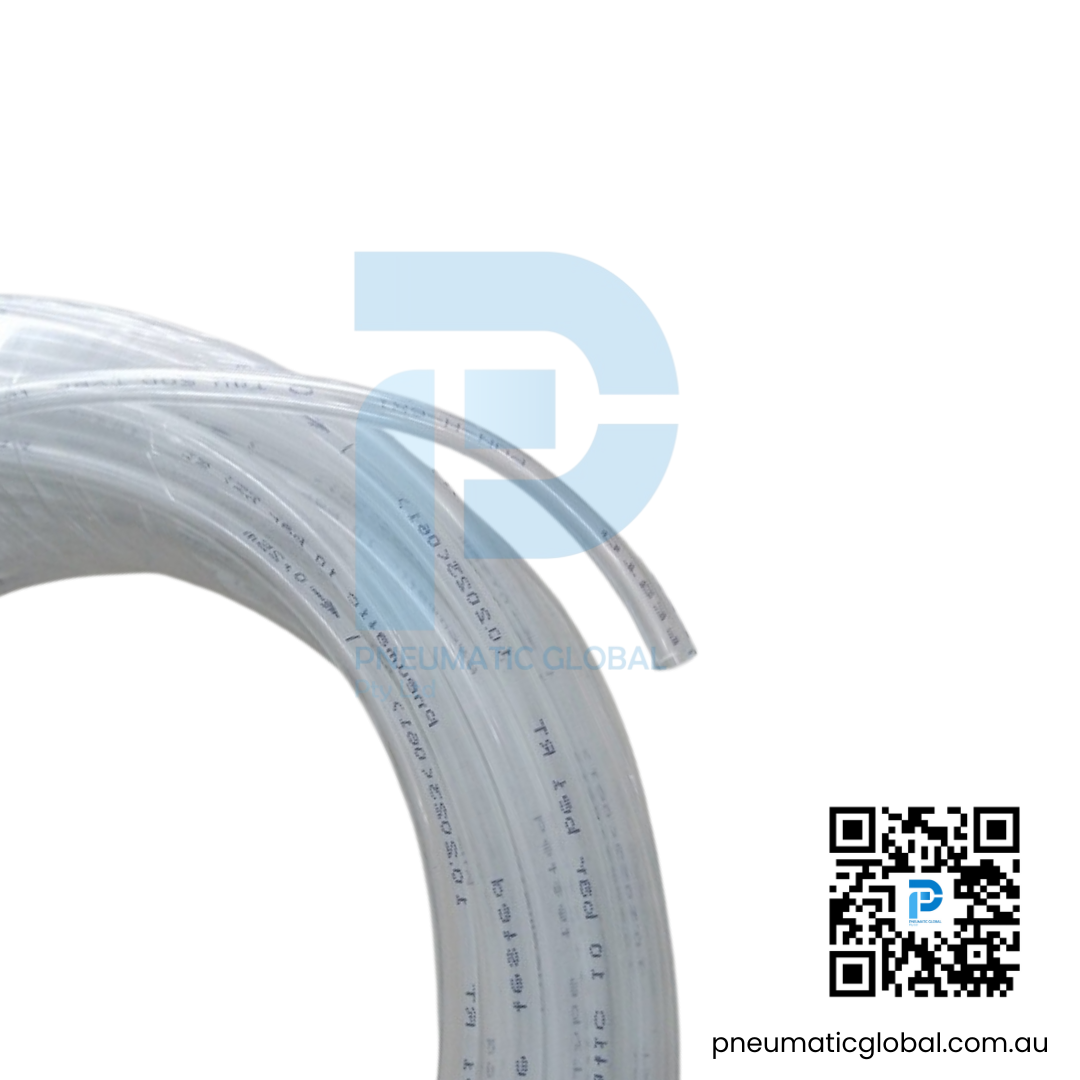

Tubing PUN-H-6×1-NL Pneumatic Tube – Transparent | FESTO Model

Name: Tubing PUN-H-6x1-NL Pneumatic Tube - Transparent | FESTO Model
SKU: 47298
Availability: InStock

398.00 US$

6mm Outer Diameter

1mm Wall Thickness

In Stock: 280
Can be backordered with delivery in 15 to 30 working days after order approval if out of stock.

SKU: 47298 Category: Tubes

Outer Diameter: 6 mm
Inner Diameter: 4 mm
Wall Thickness: 1 mm
Material: TPE-U (Polyurethane)
Color: Transparent
Operating Pressure:
- Standard: –0.095 MPa to 0.6 MPa (approx. –13.8 to 87 psi)
- Max (temperature-dependent): up to 1 MPa (145 psi)
Temperature Range: –35 °C to +60 °C
Minimum Bending Radius: 10 mm
Flow-Relevant Bending Radius: 26 mm
Compliance: RoHS, TÜV certified, UL94 HB flame rating
