| Specification | Details |
|---|---|
| Type | Magnetic reed switch sensor |
| Detection Method | Magnetic field sensing for pneumatic cylinders |
| Wiring System | 2-wire |
| Output Type | Normally Open (NO) |
| Operating Voltage | 5–120 V AC/DC |
| Max Switching Current | 100 mA |
| Contact Capacity | 10 W max |
| Response Time | < 2 ms (500 Hz) |
| Protection Class | IP67 |
| Operating Temperature | -10°C to +70°C |
| Indicator | Red LED indicator |

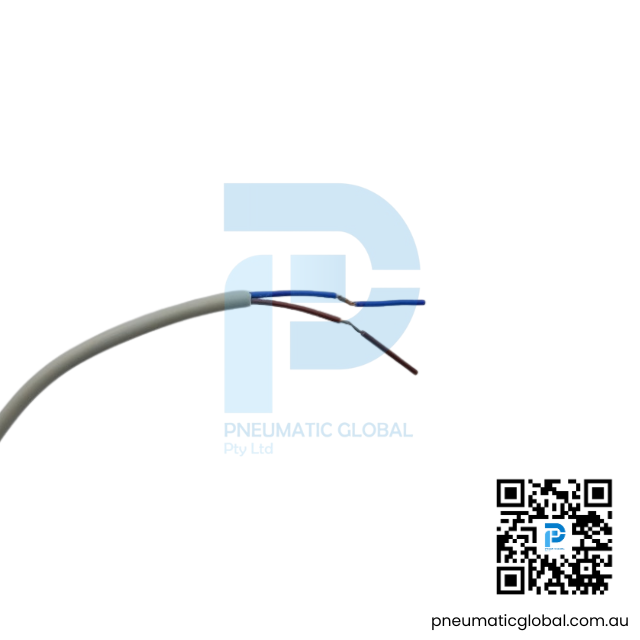

| Cable Length | 2 m cable |
| Cable Size | Ø2.8 mm wire |
| Housing Material | Durable industrial-grade polymer |
| Mounting | Cylinder groove / band mounting |
| Application | Pneumatic cylinder position detection in automation systems |
Backorder items will ship in 3–4 weeks from the confirmation date.
| Weight | 0.042 kg |
|---|
Only logged in customers who have purchased this product may leave a review.

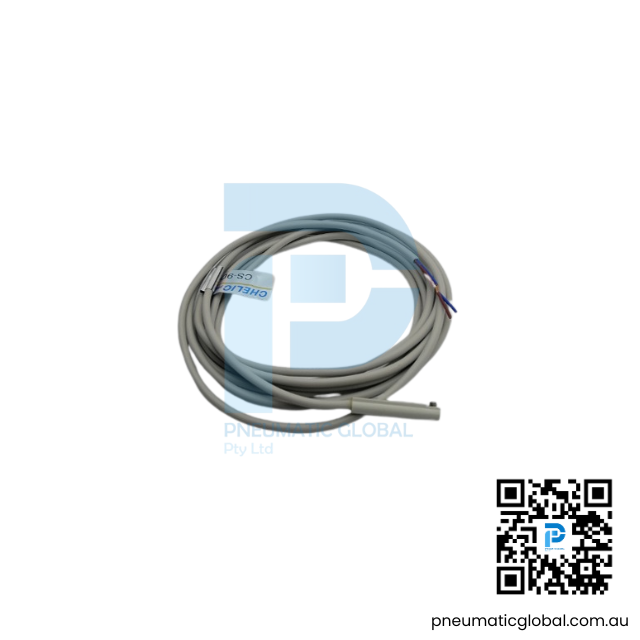

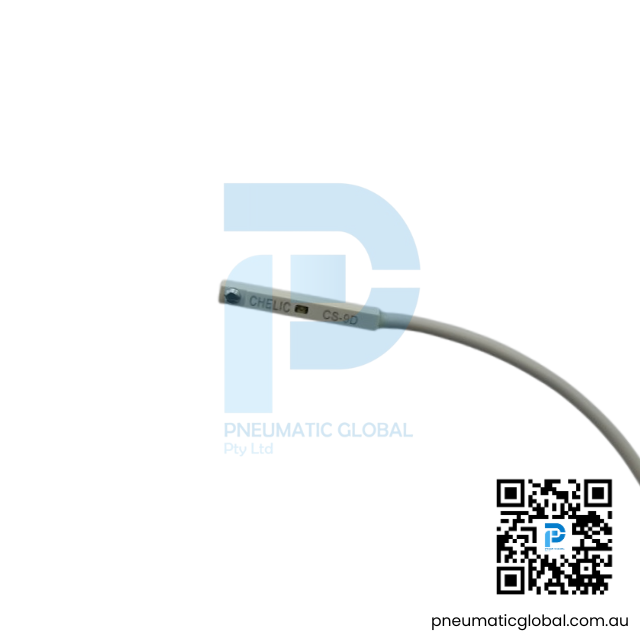

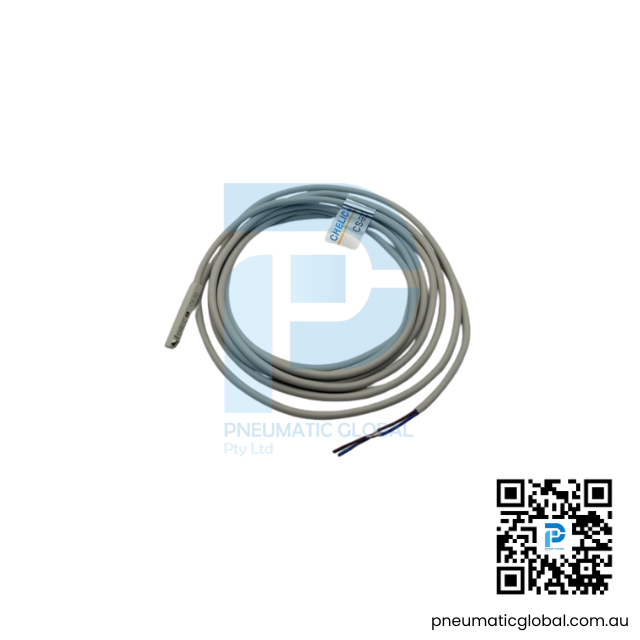

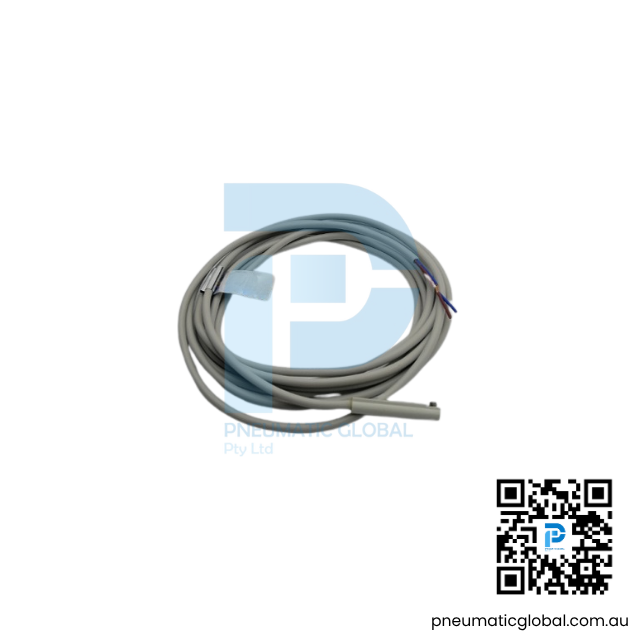

Magnetic Switch Sensor CS-9D | Equivalent Model Available from Different Leading Brands
8.00 AU$
